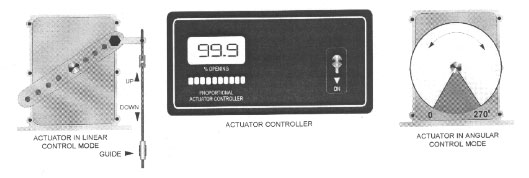

ELECTRONIC ACTUATOR:

YU Technologies introduces a compact and versatile High Torque Bi-DIRECTIONAL ELECTRONIC ACTUATOR which can be used for Angular or Linear Reciprocating actuation.

This Actuator is a perfect REPLACEMENT of PNEUMATIC VALVES & ACTUATORS; thus avoiding compressed air, I to P convertors and their costly maintenance.

This controller is designed to accept any industry standard signal of current or voltage for controlled proportional displacements with a repeat accuracy of +- 99.4%

SPECIFICATIONS:

Angular Displacement: Selectable between 0 to 270 deg. with electronically locked end positions.
Linear Displacement: 25 to 150 mm and more.
Torque: From 100 to 500 kgcm at 2.5 rpm.
Motor Power: 12,17,24,30 & 60 wattes DC; at 12 VDC.
Linearity: +-0.6% for any angular or linear position.
Repeat Accuracy: 99.6%
Controller: 100% solid state, field or remote mountable.
Control Input: 4 to 20 mA, 0 to 2 or 1 to 05 or 2 to 10 VDC.
Displacement Display: 0 to 100%
Line Voltage for Controller: 230 V AC +- 20%, 50 Hz.

OPTIONAL ACCESSORIES: Fully Digital 20 Bit Fuzzy Logic PID Controller.

APPLICATIONS:

Pricision Flow Control
Precision Position Control
Precision & Proportional Valve Actuation
Precision Chemical Dosing
Precision Boiler Water pH Control
Precision Sugar Cane Juice pH Control
Precision Sugar Cane Juice Flow Control
Speed & Load governing of Steam Turbines and IC Engines
Perfect Replacement of Pneumatic Valves & Actuators
Boiler Damper Controls
Fan Damper Controls
Furnace Fuel Oil Flow Control as per Furnace Temperature.

Please furnish following information:
1 Valve Size & Type.
2 Pipe Line Size & Line Pressure.

---
